Wazuh training for security engineers

Introduction

wazuh

• Built on the OSSEC project (GPLv2 fork)
  • Publicly recommended by original author of OSSEC
• Over 6 years of aggressive development
• Massive expansions to legacy OSSEC functionality
• Integration with other major tools and service
• Constant improvement and support

What is Wazuh?

• A situational awareness tool for your electronic assets
• An important resource for achieving regulatory security compliance

Agents available for many diverse platforms

• Linux (Debian, CentOS, RedHat, SUSE, Amazon Linux, etc)
• BSD (FreeBSD, OpenBSD, NetBSD)
• Solaris (10 & 11)
• AIX (5.3 or greater)
• MacOS
• Windows
• HP-UX (11v3)
• Note: For downloading and installing the latest Wazuh and related packages: https://wazuh.com/start/

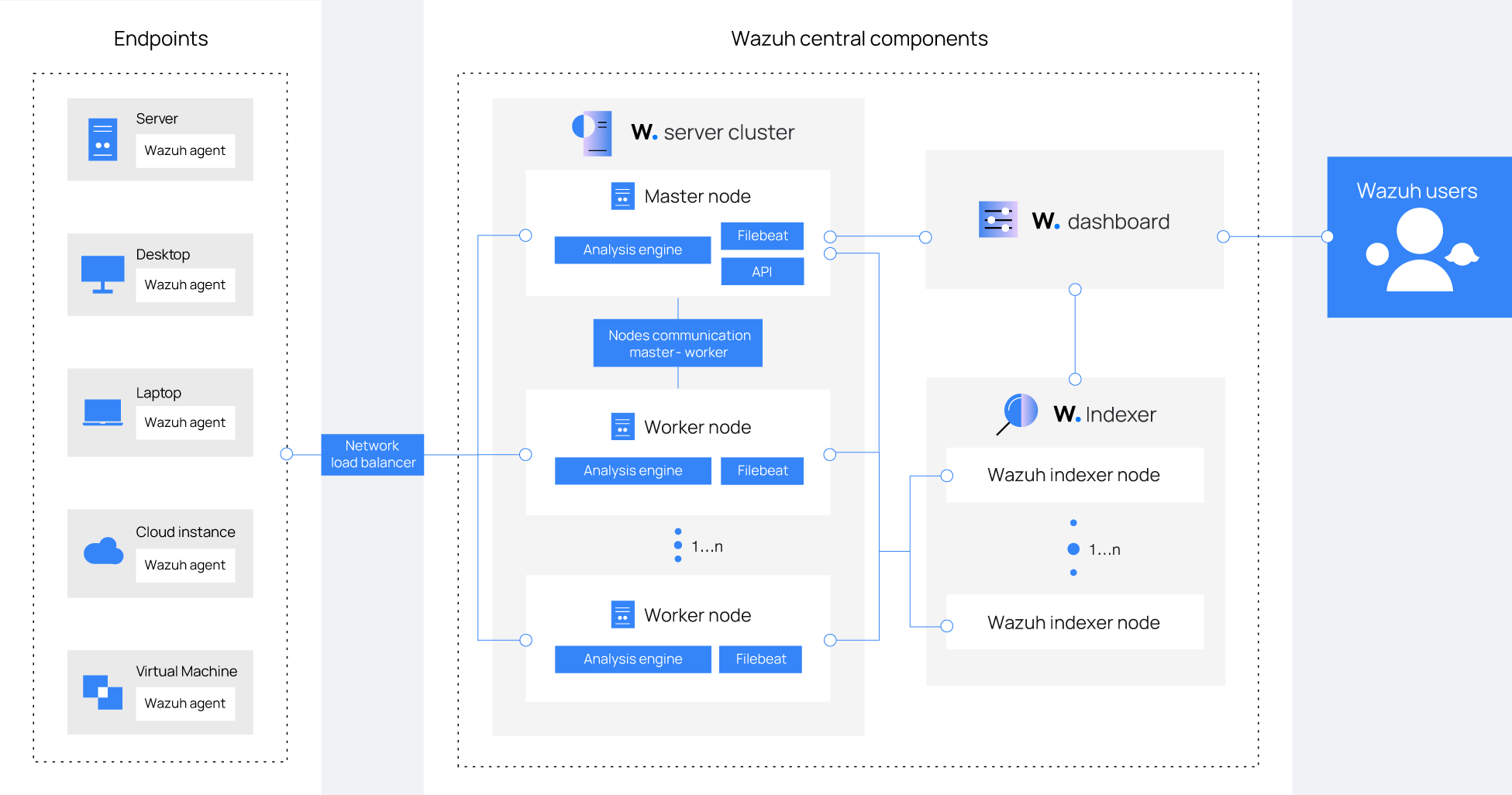

Wazuh Architecture

Wazuh Architecture

Main Components

Wazuh Processes

Each process is executed with limited privileges.

• Processes are run in a chroot environment where feasible.
• Processes are executed as unprivileged users where feasible.

Wazuh processes on Linux systems are controlled using the relevant tool (i.e. systemctl, service, initctl)

C:\Program Files (x86)\ossec-agent\win32ui.exe is the Windows management tool for controlling the Wazuh service on Windows agents.

Network Communications

• Agent-Manager connections are compressed and encrypted with per-agent pre-shared keys (AES) over tcp or udp 1514.
• Remoted can directly accept TCP and/or UDP port 514 messages from syslog-sending devices.
• For more robust centralized syslog collection, syslog server(s)can be used on agent(s) or manager.

Wazuh Secure Communication

• All Wazuh communications are authenticated and encrypted with AES or TLS.
• Wazuh manager worker nodes use AES to sync configuration and state data with the manager master node.
• Each Wazuh agent is assigned a unique key for reporting to the manager.
• Significant privilege separation and isolation is built into the solution.

Flood Protection

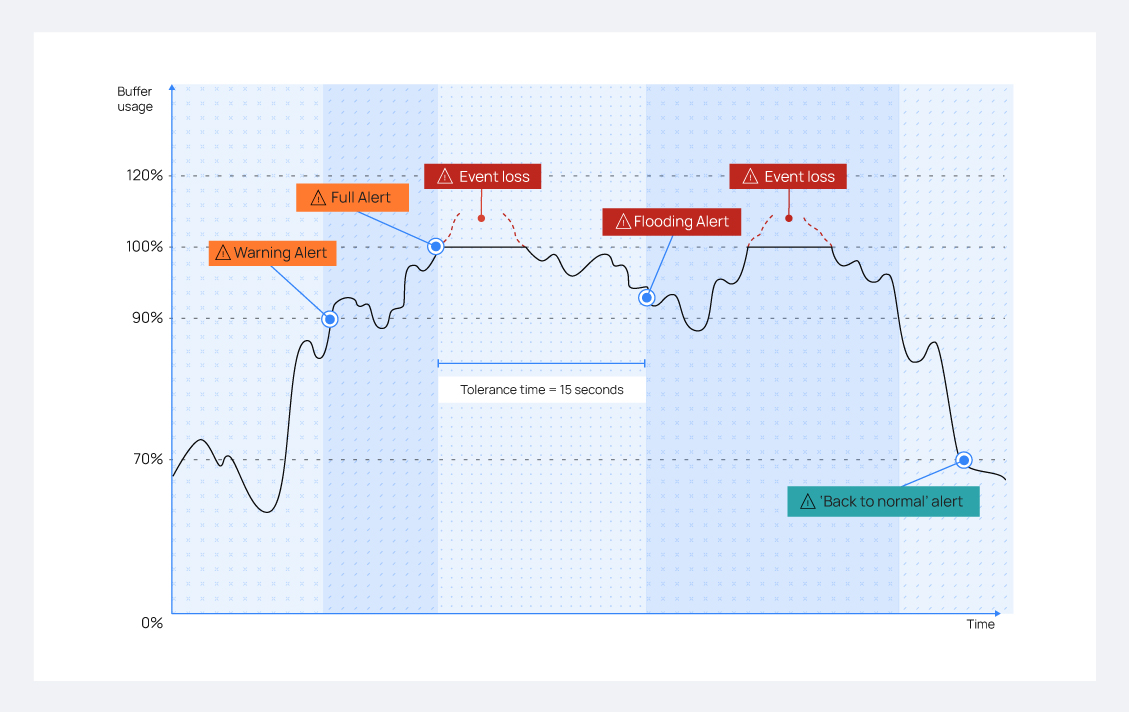

Flood Scenario

• Leaky bucket buffer flooding scenario with alerts and final recovery.

Lab Exercise Set

Agent Registration

Authd Registration Service

• Agents must have a registration allocated in the Wazuh system before they can report in.
• Authd on any Wazuh manager answers agent requests for registration.
• This is unauthenticated by default but at least password protection is recommended.
• Certificate based self-registration authentication is also possible.
• Agents have multiple methods they can use to request a registration.

Agent Initiating Registration

1. Agent auto-enrollment (default)
2. Using agent-auth tool
3. With agent installer via deployment variables
4. Requesting registration directly from Wazuh API (rare)

Lab Exercise Set

Remotely upgrading Wazuh Agents

Ways to remotely upgrade Wazuh agents

Instead of manually upgrading Wazuh directly on agent systems, or using yum/apt repositories you can push Wazuh agent upgrades out from your Wazuh managers to connected agents, even to remote ones.

• Wazuh API:

  • automatically routes upgrade tasks to the right managers

• agent_upgrade (legacy):

  • a CLI tool to upgrade agent(s) in a single-manager setups
  • not for use with Wazuh managed cloud, or manager clusters

• Web Interface

  • Through the API Console on the web interface users may interact with the API to initiate the agent upgrade

Lab Exercise

General Configuration

ossec.conf

• primary configuration file on managers and agents

• location

  • /var/ossec/etc/ossec.conf
  • C:\Program Files (x86)\ossec-agent\ossec.conf
  • /Library/Ossec/etc/ossec.conf

• ossec.conf controls the core components of Wazuh

  • log analysis
  • file integrity monitoring (syscheck)
  • rootkit detection
  • active-response
  • loads the decoders & the rules.xml files
  • controls the notification (e.g. e-mail)

internal_options.conf

Low-level config file for managers and agents

• Location

  • internal_options.conf

    • shows all options, but is overwritten by Wazuh upgrades

  • local_internal_options.conf

    • copy items from internal_options.conf here to customize

• internal options are for:

  • controlling debug level for specific daemons

  • enabling/disabling grouping of email alerts
  • enabling/disabling remote commands
  • various other obscure settings generally best left alone

• Handle with care!

Agent Configuration

• Location

  • /var/ossec/etc/shared/*GROUP*/agent.conf
  • Multiple possible *GROUP* locations, each servicing a different group of agents. Agents can be in multiple groups
  • Controlled by agent_groups command on the manager. Default group is called default

• Agents pull it from the Wazuh manager, quickly fetching new versions and automatically restarting to apply them.
• agent.conf should never be edited on the agent side as changes will quickly be overwritten with the manager’s version.
• Specific agent config sections are possible on a per-OS, per-profile, and per-agent basis, allowing great flexibility.
• Editable from the Web Interface

Agent groups and profiles

Important tools for organizing the different configuration setting you will need use on different groups/types of agents.

• agent groups
• configuration profiles

Agent groups and profiles

In an agent’s ossec.conf, the <config-profile> line can include multiple profiles:

<client>
    <config-profile>amzn,amzn2,indexer</config-profile>
    <server>
      <address>wazuh-manager.company.com</address>
    </server>
</client>

<agent_config profile="amzn">
  <sca>
    <policies>
      <policy>cis_amazon_linux_2.yml</policy>
    </policies>
  </sca>
</agent_config>

Agent.conf large example

<agent_config>
  ...
</agent_config>

<agent_config os="Linux">
  ...
</agent_config>

<agent_config os="Windows">
  ...
</agent_config>

<agent_config profile="indexer">
  ...
</agent_config>

<agent_config name="linux-agentX5">
  ...
</agent_config>

Lab Exercise

Mass deployment discussion

• Map out necessary agent groups
• If desired prepare a custom local agent configuration
• Additional software to be installed alongside Wazuh
• Supply custom configurations (SCA, Active Response, etc.)
• If remote commands are desired adjust internal configuration files

Log Analysis

Log Analysis with Wazuh

Wazuh’s log analysis engine is capable of:

• extracting important fields from a log message
• identifying & evaluating the content of a log message
• categorizing it by matching specific rules
• and consequently generating an alert from it.

Log Flow

• wazuh-logcollector on the agent collects the logs
• wazuh-analysisd on the manager analyzes the log entries
• wazuh-maild sends out alerts
• wazuh-execd used for Active Response

Stages of Log Analysis

• Log collection on agents as defined in <localfile> sections

  • These define a <log_format> that informs pre-decoding.
  • For json logs, these also can define one or more additional fields to mark the json logs to clearly indicate the log type or source, to inform rule-based analysis.

• Pre-decoding

  • Extracts basic fields based on <log_format> value of source, like program_name from from the syslog header

• Decoding

  • Extracts program-specific fields like srcip or username

• Rule-based analysis of decoded log

  • One more more instances and types of matching criteria can be against individual log fields or the whole log.
  • Matching of field values against CDB lists also supported.

Example <localfile> sections

Collecting a file, a Windows EventChannel and a set of files by using a wildcard:

<localfile>
   <log_format>syslog</log_format>
   <location>/var/log/messages</location>
</localfile>

<localfile>
  <log_format>eventchannel</log_format>
  <location>Application</location>
</localfile>

<localfile>
  <log_format>json</log_format>
  <location>/var/log/suricata/eve-*.json</location>
  <label key="@source">suricata</label>
</localfile>

Command type <localfile> sections

Configuration to collect the output of a command:

<localfile>
   <log_format>full_command</log_format>
   <command>netstat -natp | grep '^tcp .*LISTEN ' | sort | sed 's/LISTEN \+[0-9]\+\///g'
   | grep -v "127.0.0.1:" | awk '{print $4"\t"$6}'</command>
   <frequency>300</frequency>
   <alias>netstat listening ports</alias>
</localfile>

<rule id="533" level="7">
  <if_sid>530</if_sid>
  <match>ossec: output: 'netstat listening ports</match>
  <check_diff />
  <description>Listened ports status (netstat) changed (new port opened or closed).
  </description>
  <group>pci_dss_10.2.7,pci_dss_10.6.1,gpg13_10.1,gdpr_IV_35.7.d,hipaa_164.312.b,
  nist_800_53_AU.14,nist_800_53_AU.6,tsc_CC6.8,tsc_CC7.2,tsc_CC7.3,</group>
</rule>

Various log samples

pam / squid / apache log samples

2016-03-15T15:22:10.078830+01:00 tron su:pam_unix(su-l:auth)
:authentication  failure;logname=tm uid=500 euid=0 tty=pts/0
ruser=tm rhost= user=root

1265939281.764 1 172.16.167.228 TCP_DENIED/403 734 POST
"http://lbcore1.metacafe.com/test/SystemInfoManager.php"
- NONE/- text/html

[Sun Mar 06 08:52:16 2016] [error] [client 187.172.181.57]
Invalid URI in request GET: index.php HTTP/1.0

Example 1/2

Log:

Dec  5 00:08:49 manager6 sshd[25467]: Failed password for root from
113.195.145.13 port 19044 ssh2

Pre-decoding :

hostname: manager6
program_name: sshd
log: Failed password for root from 113.195.145.13 port 19044 ssh2

Example 2/2

Log:

Dec  5 00:08:49 manager6 sshd[25467]: Failed password for root from
113.195.145.13 port 19044 ssh2

Decoding :

decoder: sshd
dstuser: root
srcip: 113.195.145.13
srcport: 19044

Logging alerts to alerts.json

• When <jsonout_output> is enabled in the manager’s ossec.conf, alerts are recorded as JSON records in alerts.json. These are normally shipped by Filebeat to the Wazuh indexer or on alternate installations to Elasticsearch or by Splunk Universal Forwarder to Splunk.
• /var/ossec/logs/alerts/alerts.json:

{"timestamp":"2020-12-07T21:44:37.313+0000","rule":{"level":5,
"description":"sshd: Reverse lookup error (bad ISP or attack).
","id":"5702","firedtimes":58,"mail":false,"groups":["syslog"
,"sshd"],"pci_dss":["11.4"],"gpg13":["4.12"],"gdpr":
["IV_35.7.d"],"nist_800_53":["SI.4"],"tsc":["CC6.1","CC6.8",
"CC7.2","CC7.3"]},"agent":{"id":"000","name":"manager1"},
"manager":{"name":"manager1"},"id":"1607377477.3731351",
"cluster":{"name":"wazuh","node":"master"},"full_log":"Dec
7 21:44:37 ip-10-0-1-1 sshd[22566]: reverse mapping checking
getaddrinfo for 190.202.147.253.estatic.cantv.net [190.202.147.253]
failed - POSSIBLE BREAK-IN ATTEMPT!","predecoder":
{"program_name":"sshd","timestamp":"Dec  7 21:44:37","hostname"
:"ip-10-0-1-1"},"decoder":{"parent":"sshd","name":"sshd"},"data"
:{"srcip":"190.202.147.253"},"location":"/var/log/secure"}

Logging alerts/events to archives.json

• Alternatively, when <logall_json> is enabled, all events are logged to archives.json whether or not they match a rule.
• /var/ossec/logs/archives/archives.json

{"timestamp":"2017-12-05T02:51:36+0000","rule":{},"agent":{"id":"000"
,"name":"manager6"},"manager":{"name":"manager6"},"id":"1512442296.
149532","full_log":"Dec  5 02:51:35 manager6 sshd[382]: Disconnected
from 113.195.145.13 port 48727 [preauth]","predecoder":{"program_name"
:sshd","hostname":"manager6"},"decoder":{"name":"sshd"},"location":
"/var/log/secure"}

Log retention considerations

Considerations regarding alerts.json and archives.json

• These files are rotated and compressed daily by default.
• They accumulate indefinitely unless you add a process to delete old files.
• Sample cron one-liner to daily remove 7+ day old rotated files:

0 2 * * * root find /var/ossec/logs/{alerts,archives} -mtime +7 -exec rm {} \;

• The archives.json file contains both alerts and non alerting events.
• To split the routing of archives.json across multiple index patterns, the Wazuh Filebeat module must be customized.
• Rotated files can be used to reinject one or more past day’s worth of alerts.json or archives.json files back to the Wazuh indexer. See: https://wazuh.com/blog/recover-your-data-using-wazuh-alert-backups/

Log Analysis and Regulatory Compliance

• Computer-aided log analysis is a powerful tool for identifying threats or potential problems within a vast stream of collected log events.

• Many regulatory compliance requirements call for regular review of security logs.

  • This is generally not feasible nor sustainable without the aid of machine analysis and categorization.

• It can also help classify which events need to be stored in order to comply with regulatory requirements.

  • This translates to reduced storage costs.

Why analyze logs?

Compliance mapping in Wazuh rules

• The ruleset maintained by Wazuh contains mappings to specific compliance requirements.

• A list of all related Wazuh rules can be found here:

  • https://wazuh.com/resources/Wazuh_PCI_DSS_Guide.pdf
  • https://wazuh.com/resources/Wazuh_GDPR_White_Paper.pdf

PCI-tagged Wazuh rule :

<rule id="5402" level="3">
 <if_sid>5400</if_sid>
 <regex> ; USER=root ; COMMAND=| ; USER=root ; TSID=\S+ ; COMMAND=</regex>
 <description>Successful sudo to ROOT executed.</description>
 <group>pci_dss_10.2.5,pci_dss_10.2.2,gpg13_7.6,gpg13_7.8,gpg13_7.13,
 gdpr_IV_32.2,hipaa_164.312.b,nist_800_53_AU.14,nist_800_53_AC.7
 nist_800_53_AC.6,</group>
</rule>

Lab Exercise Set

Wazuh indexer, dashboard and Filebeat

	The Wazuh indexer is a highly scalable full-text search and analytics engine, that receives data shipped by Filebeat, indexes it and allows the Wazuh dashboard access as its primary data source. It is a version of OpenSearch built and maintained by the Wazuh team.
	The Wazuh dashboard is the web front-end to the data in the Wazuh indexer. This customized package forked from OpenSearch dashboards includes the Wazuh plugin which on top of solution specific dashboards interacts with the Wazuh API to provide visibility and control over the solution’s configuration and status.
	Beats is a family of data shippers. Using Filebeat specifically, Wazuh’s alerts.json or archives.json data can be sent to the Wazuh indexer. It also can do data transformation and enrichment, like parsing strings, normalizing field names, and doing geoip lookups.

Wazuh indexer, dashboard and Filebeat

Indexer and dashboards integration demo

Considerations for the Wazuh indexer

Considerations regarding the Wazuh indexer

• ILM for live indices and snapshots: Blog
• Monitoring health of Wazuh indexer cluster
• Management of shards and replicas
• Index rollover periods
• Access restrictions for the Wazuh indices and for the Wazuh dashboard
• Split routing of alerts across different index patterns
• Data enrichment
• Field normalization
• Field data types like number and ip
• Analysis of at least samples of non-alert Wazuh events

Questions
